Why “conservation glazing” needs defining
The phrase “conservation glazing” gets attached to almost anything sold for a period window: slim double-glazed units, vacuum glass, secondary glazing, even an ordinary unit with a bar stuck on the face. It is not a regulated term, and it does not, on its own, mean a window is suitable for a listed building. On a listed or conservation-area sash the only definition that counts is the one the conservation officer applies — glazing that preserves the window’s appearance and the building’s special interest. Everything below is measured against that, not against a brochure.
Why the sash window is the hard case

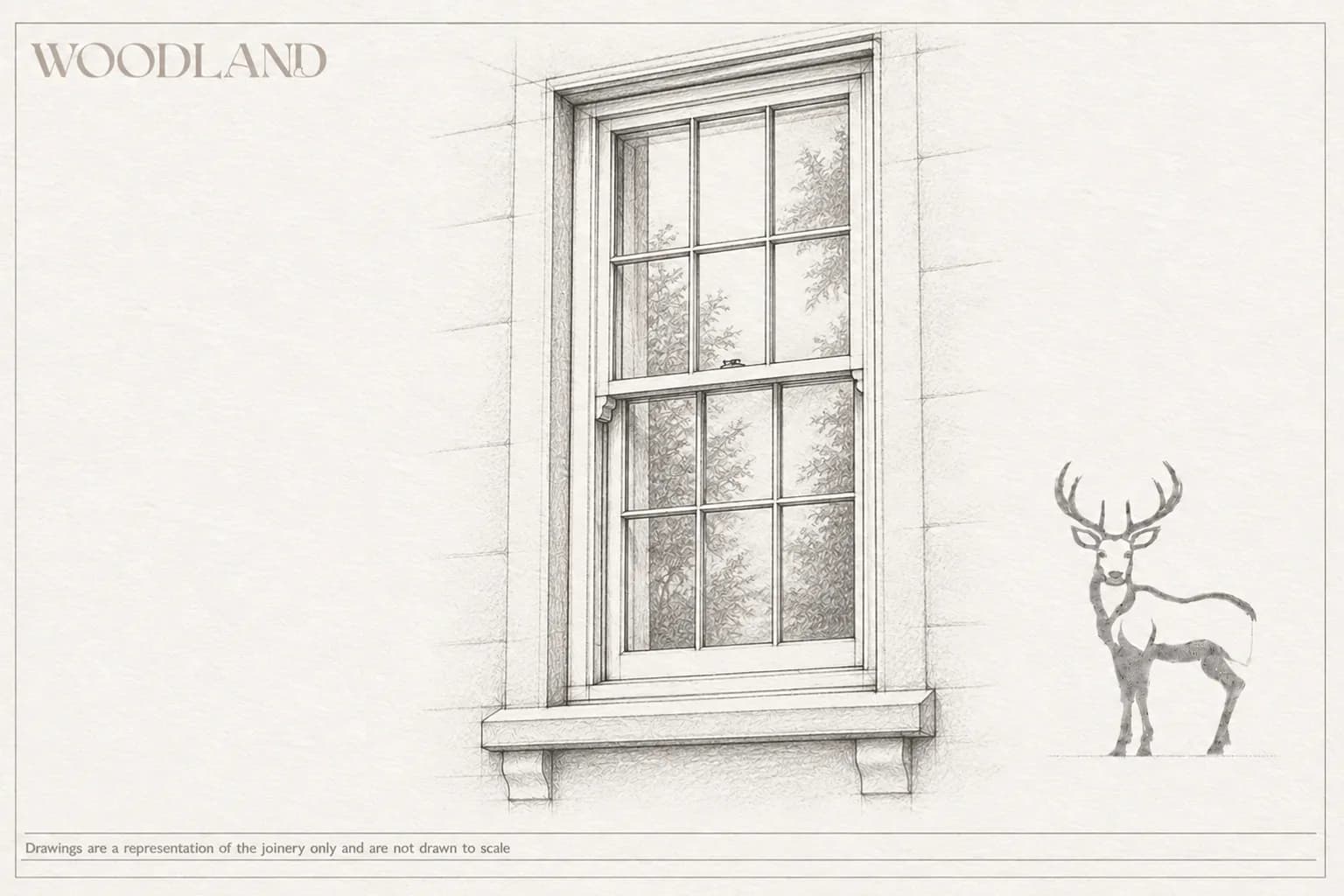

A sash is the most demanding period window to glaze well, for two reasons. The first is the sightline. A traditional sash carries slender glazing bars — often a moulded bar around 18 to 25 mm wide — and a thin putty line at the edge of the glass. Anything that thickens that bar or widens the sightline reads immediately as a modern replacement. The second is movement. A sash is a counterbalanced moving part, hung on cords or chains over weights sized to the original glass. Change the weight of the glass and you change the balance of the window. That is why glazing a sash is never only a glass decision — it is a decision about the whole window.
The options, honestly
Four approaches sit behind the phrase, and they are not equivalent.
Retain and repair the existing single glazing. On the most significant windows this is what consent will require: keep the historic crown or cylinder glass, repair the sash, and improve comfort by other means — shutters, lined curtains, and proper draught-sealing, which together address most of the discomfort people blame on the glass.
Secondary glazing. An independent, slim internal frame fitted behind the original window. The historic sash is left untouched, so consent is usually straightforward, and the air gap does more for noise than almost anything else.
Slim-profile double glazing. A sealed double-glazed unit made thin enough to sit in a sash, developed specifically for conservation work.
Vacuum glazing. The newest route — two panes separated by a near-vacuum a fraction of a millimetre thick, in a unit barely thicker than single glass.
Which is appropriate is decided window by window, by grade, by elevation, and by the conservation officer’s guidance.
Slim-profile double glazing: the detail that decides it
A standard double-glazed unit is around 24 to 28 mm thick — far too deep for a traditional sash. A slim-profile unit compresses that to roughly 11 to 16 mm overall, with a narrow gas-filled cavity (argon, or krypton for better performance), so it can be glazed into a genuine moulded bar and hold a near-historic sightline. Centre-pane U-values land around 1.6 to 2.2 W/m²K, against roughly 4.8 to 5.0 for single glazing.
The detail that decides whether it passes is the spacer — the bar around the edge of the cavity that holds the two panes apart. A bright aluminium spacer sitting behind a slim glazing bar betrays the unit at a glance; a warm-edge spacer in a dark or matched finish keeps it discreet and improves the edge performance at the same time. On a sash, the spacer line and the sightline are precisely what a conservation officer inspects.
Vacuum glazing: thinner still
Vacuum glazing solves the same problem a different way. Two panes are separated by a sealed gap under a fraction of a millimetre — a near-vacuum — held apart by an almost invisible grid of tiny support pillars. The whole unit is only around 6 to 8 mm thick, close to single glass, so it fits the slenderest sashes where even a slim unit is too deep, and it reaches U-values around 0.7 to 1.1 W/m²K. The trade-offs are a small evacuation port at one corner (increasingly discreet on heritage products), a faint pillar grid visible at close range, and a higher cost. For the most demanding sightlines it is often the only double-glazed option that will fit at all.
Secondary glazing: the quiet performer
Where consent will not allow altering the existing glazing — or where noise, not heat loss, is the real problem — secondary glazing is frequently the best answer. An independent slim frame sits inside the original window; the historic sash and its glass are left completely intact, which is why officers accept it where they would refuse a sealed unit. The wide air gap between the two layers is what makes it work: it brings the effective U-value down to around 1.8 to 2.0 and, with a gap of 100 mm or more, cuts external noise far more than any sealed unit can. The cost is a second internal frame to operate and keep clean — but nothing historic is touched, and it can be removed without trace.
The weight problem nobody mentions
Double-glazing a sash roughly doubles the weight of the glass, and a sash window only works while its weights balance the sashes. Add slim units without re-balancing and you get a window that drops, sticks, or will not stay open. A proper conversion therefore re-weighs the box — heavier cast weights, or a change of cords or chains — as part of the specification, not as an afterthought discovered on site. Vacuum and secondary glazing largely sidestep this: vacuum units are far lighter than slim doubles, and secondary glazing adds nothing to the original sash. It is one more reason the glass and the window cannot be decided separately.
What actually gets consent
There is no default. On a high-grade or prominent elevation, consent may require keeping the original single glazing entirely and improving comfort through shutters and draught-proofing. On a less sensitive sash, a slim-profile or vacuum unit in a correct moulded bar, with a discreet warm-edge spacer, will often be accepted. Secondary glazing sits behind almost any window because it touches nothing. The specification that succeeds is the one that names the unit, the spacer, the sightline, and the weight implications, and matches them to what the officer has already accepted on comparable windows — decided window by window, against the building, before anything is ordered.
